Choke coils

Normal Mode choke coils

● Insulation Class： Class B （130℃），Class F （155℃），Class H （180℃）

● It can be used in all kinds of appliances and frequency conversion equipment to suppress differential mode interference





Common-mode choke coils

● Rated Voltage:                           AC250V 50 Hz /60 Hz OR DC250V

● Dialectic strength voltage:         Coil- Coil AC2000V 1min OR AC2400V 2s

● Insulation Resistance:                Coil- Coil DC500V 1min

● Insulation class:                         CLASS B （130℃） CLASS F （155℃）

● Temperature Rise:                      Refer to the specific product specifications

● Operating Temperature:            -40℃ ~ +130 ℃（COIL）

● Application

   Electromagnetic cooking appliances, microwave ovens, air-conditioners and other home appliances equipment

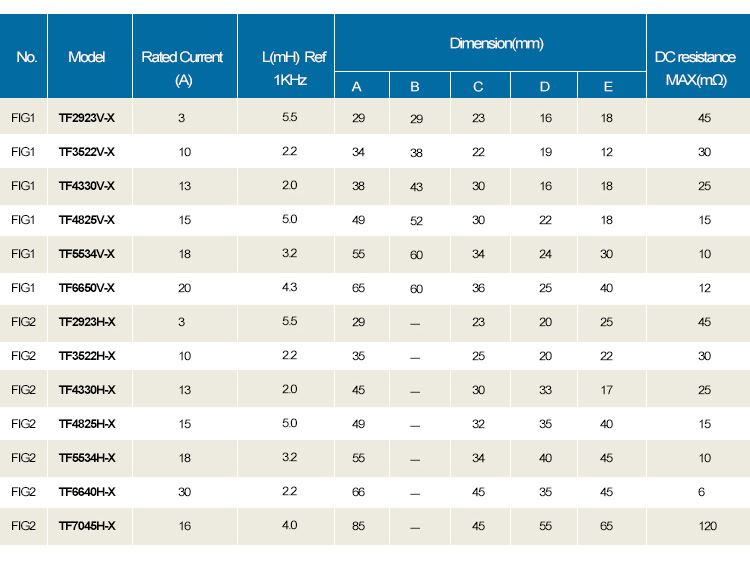

1.Typical products: according to 5K material , size A :length B:height C:wide D:Pin distance E:Pin distance
